27 Gallon ATV Sprayers with Boom-less Nozzles

AT27-BB is the base model ATV sprayer with short saddles.


Start with a low-profile 27 gallon tank with short saddles still putting some weight in front of the ATV's rear axle for added safety.  A built in baffle prevents sloshing.  A single sump allows for better tank drainage.  All components are bolted directly to the tank for easy installation and removal of the sprayer unit.

Request Price Quote

AT27-BB Standard Features

4 GPM Pump

Shurflo® 4 GPM Pump

 Each AT27-BB sprayer features a 4 GPM Shurflo ®  chemical resistant, diaphragm pump.  These on-demand pumps are self-priming and have a built-in check valve preventing back flow through the pump.

View Pump Parts Breakdown

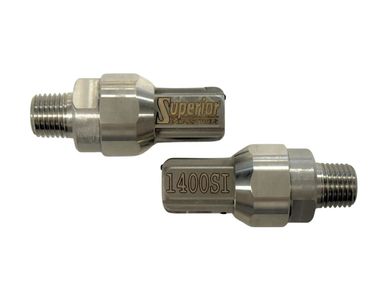

Boom Buster Nozzles

Boom Buster nozzles

 Each AT27-BB sprayer features two #125 low-drift stainless steel Boom Buster nozzles, providing an extra-wide, consistent spray pattern with excellent distribution.  26 ft. total coverage.

View Application Chart

GunJet® Spray Gun

GunJet® 30L spray with Adjustable Nozzle

This 30L heavy duty spot spraying gun by TeeJet® is light to handle but built tough with internal brass parts, an 8”  brass barrel encased in a molded nylon body with a nylon trigger and an adjustable brass tip.

View Parts Breakdown

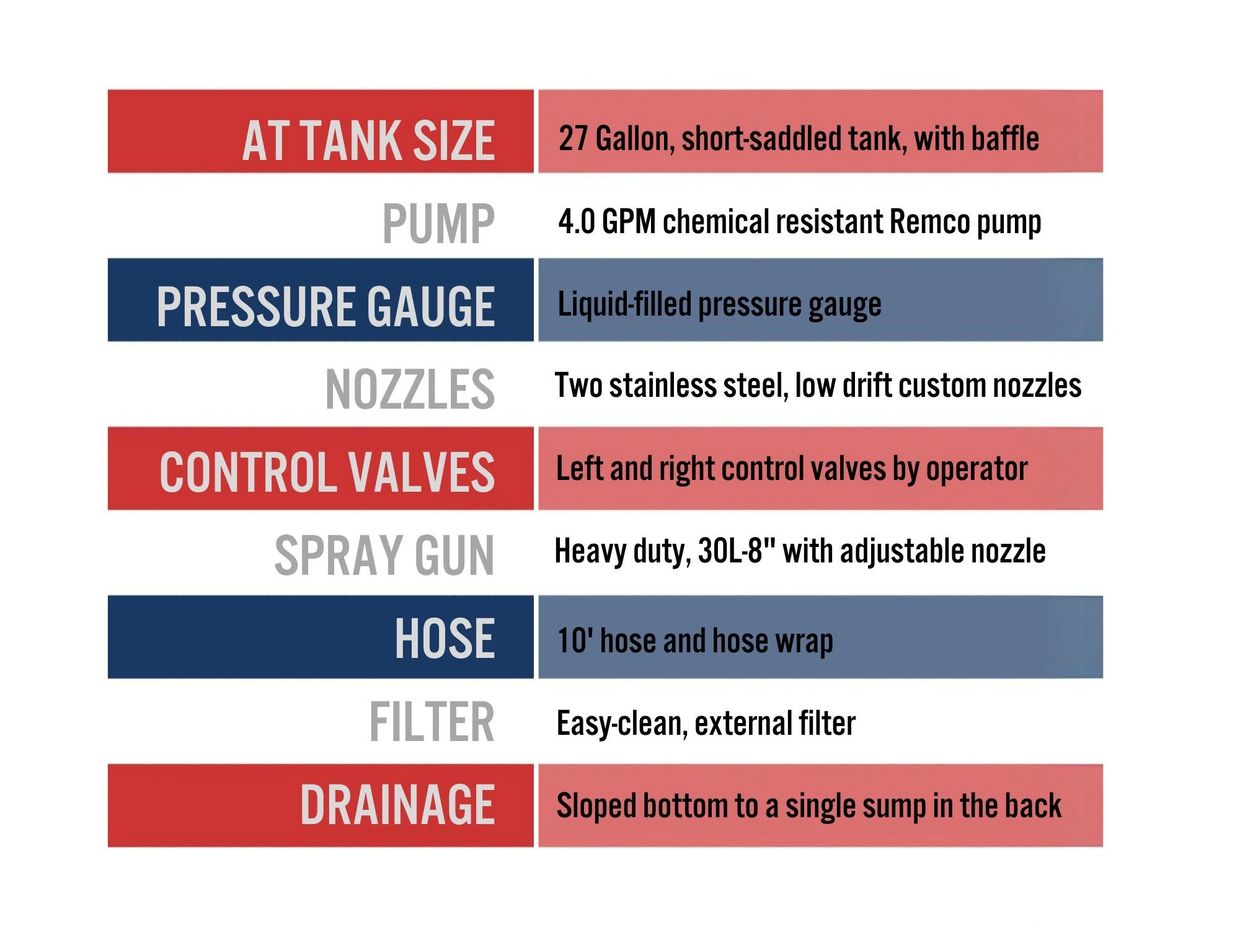

AT27-BB Standard Specs

AT27-BB standard specs

AT27-BB Model Options

AT27-BB boomless sprayer on a Yamaha Kodiak 700 EPS ATV

AT27-BB ATV Sprayer (base model)

27 gallon tank with short saddles, dual #125 Boom Buster nozzles, 4 GPM pump, GunJet ®  30L-8 spray gun with adjustable tip.

Request Price Quote

AT27-BB-CI ATV Sprayer

Request Price Quote

AT27-BB-E ATV Sprayer

Base model plus Electric Actuators [E] to control the angle of spray from the driver's seat.  Ideal for spraying road sides, creek banks, and fence lines with ease while keeping the ATV on level ground.

Request Price Quote

AT27-BB-CI-E

Base model plus Chemical Injection plus Electric Actuators

Request Price Quote

AT27-BB Accessories

W16-F Front Tank Assembly

W16-F front tank assembly

Add a 16 gallon wrap around front tank assembly to any AT27-BB sprayer.  This supplementary tank features a Banjo quick coupler for easy removal, its own tank valves, dual sumps for complete drainage, and a separate filter.

Booms

B12 boom

Add a boom to any AT27-BB sprayer.  Choose from a 40" or 80" assembled boom to a 12' or 18' folding boom, to give yourself 3 ways to spray: boom-less nozzles, boom, spray gun.

Drift Control Shield

Sprayer drift control shield

Add a drift control shield to help protect yourself and the ATV from spray drift.  Use on any AT27-BB sprayer.  The shield will move in tandem with electric actuators.

Hose Reels


Haul and store a heavier spray gun hose with the help of a hose reel, available in electric, manual, or spring rewind varieties.

Spray Guns


A variety of spray guns are available to add to an AT27-BB sprayer.  Lightweight to a dual grip Gorilla gun, we have a gun to fit your needs.

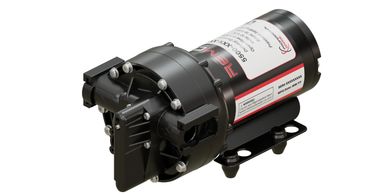

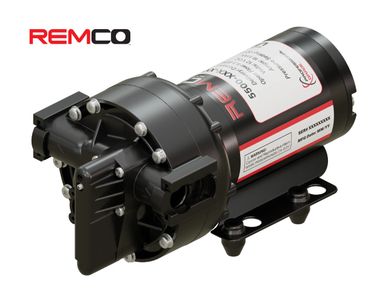

5.5 GPM Pump


For at least 30 feet of coverage, move up to the 5.5 GPM Everflo pump and #140 Boom Buster nozzles.
