25 Gallon ATV Sprayers with Boom-less Nozzles

WA25-BB is the base model wrap around ATV sprayer.

Pictured is a Superior Industries WA25-BB ATV sprayer.

Start with a low-profile 25 gallon tank with longer saddles that put 20% of the weight in front of the ATV's rear axle for added safety.  Dual sumps allow complete drainage.  All components are bolted directly to the tank for easy installation and removal of the sprayer unit.

Request Price Quote

WA25-BB Standard Features

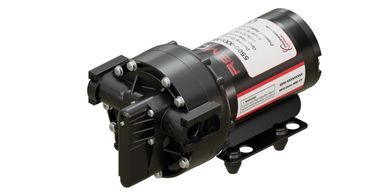

4 GPM Pump

Shurflo® 4 GPM Pump

 Each WA25-BB sprayer features a 4 GPM Shurflo ®  chemical resistant, diaphragm pump.  These on-demand pumps are self-priming and have a built-in check valve preventing back flow through the pump.

View Pump Parts Breakdown

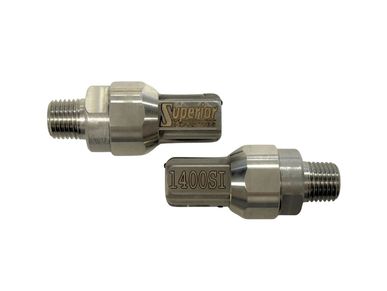

Boom Buster Nozzles

Boom Buster nozzles

 Each WA25-BB sprayer features two #125 low-drift stainless steel Boom Buster nozzles, providing an extra-wide, consistent spray pattern with excellent distribution.  26 ft. total coverage.

View Application Chart

GunJet® Spray Gun

GunJet® 30L spray with Adjustable Nozzle

This 30L heavy duty spot spraying gun by TeeJet® is light to handle but built tough with internal brass parts, an 8”  brass barrel encased in a molded nylon body with a nylon trigger and an adjustable brass tip.

View Parts Breakdown

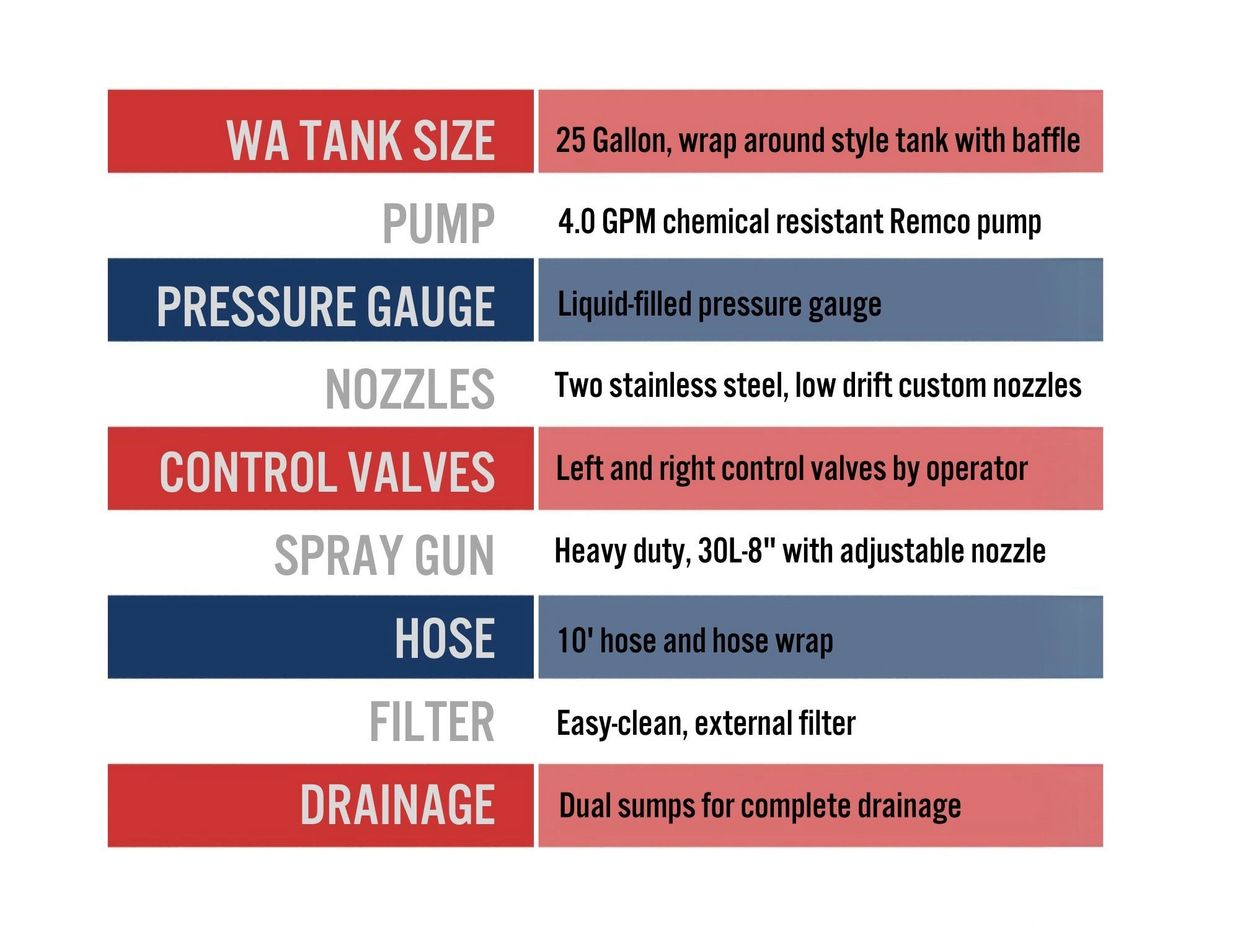

WA25-BB Standard Specs

WA25-BB standard specs

WA25-BB Model Options


WA25-BB ATV Sprayer (base model)

25 gallon wrap-around tank, dual #125 Boom Buster nozzles, 4 GPM pump, GunJet ®  30L-8 spray gun with adjustable tip.

Request Price Quote

WA25-BB-E ATV Sprayer

Base model plus Electric Actuators [E] to control the angle of spray from the driver's seat.  Ideal for spraying road sides, creek banks, and fence lines with ease while keeping the ATV on level ground.

Request Price Quote

WA25-BB Accessories

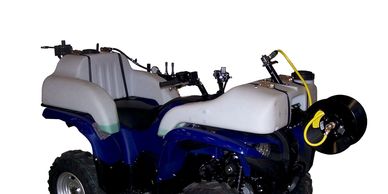

W16-F Front Tank Assembly

W16-F front tank assembly

Add a 16 gallon wrap around front tank assembly to any WA25-BB sprayer.  This supplementary tank features a Banjo quick coupler for easy removal, its own tank valves, dual sumps for complete drainage, and a separate filter.

Booms

B12 boom

Add a boom to any WA25-BB sprayer.  Choose from a 40" or 80" assembled boom to a 12' or 18' folding boom, to give yourself 3 ways to spray: boom-less nozzles, boom, spray gun.

Drift Control Shield

Sprayer drift control shield

Add a drift control shield to help protect yourself and the ATV from spray drift.  Use on any WA25-BB sprayer.  The shield will move in tandem with electric actuators.

Hose Reels


Haul and store a heavier spray gun hose with the help of a hose reel, available in electric, manual, or spring rewind varieties.

Spray Guns


A variety of spray guns are available to add to an WA25-BB sprayer.  Lightweight to a dual grip Gorilla gun, we have a gun to fit your needs.

5.5 GPM Pump


For at least 30 feet of coverage, move up to the 5.5 GPM Everflo pump and #140 Boom Buster nozzles.
